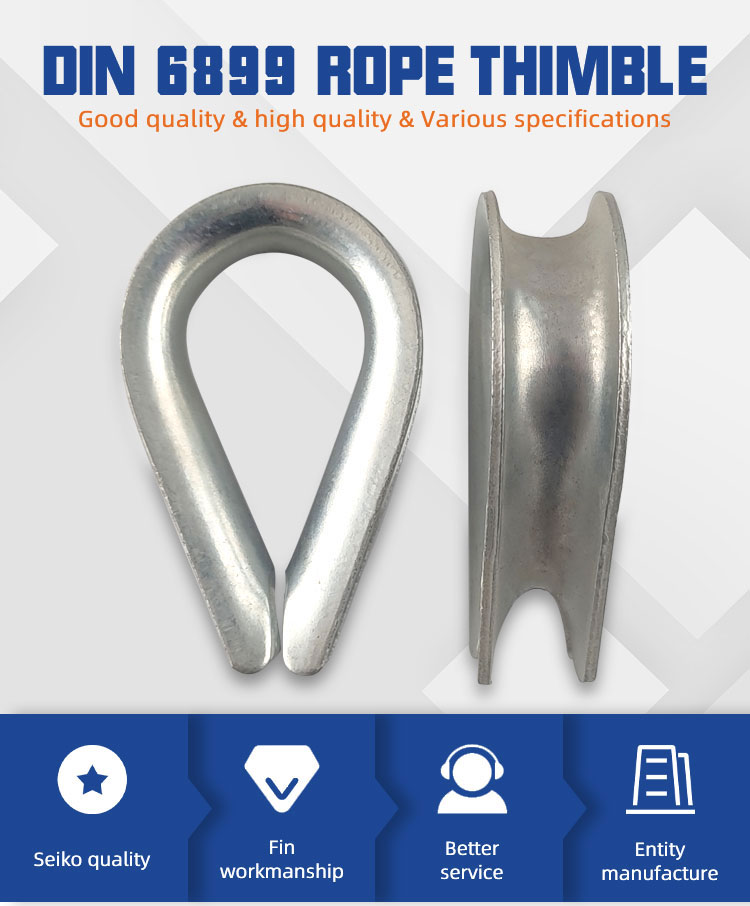

Steel wire rope sling thimble,also known as chicken heart ring,is a kind of lifting appliance.It is provided with a rope groove for the end of the rope to wrap and tie,so as to prevent excessive bending and wear of the rope,and can connect the heart-shaped metal ring of other components.

Details

DIN6899A Galvanized Wire Rope Thimble

Product Display

Product Paramenters

Rope Dia.	Switch Opening a	Inside Length i	Inside Width c	Weight/Each(Kg)
2.5	3	21.5	10	0.0014
3	3.5	23.5	11	0.0035
3.5	4	26.5	12	0.0038
4	5	28.5	13	0.0042
5	6	30	14	0.008
6	7	33	15	0.0081
7	8	35	16	0.011
8	9	39	18	0.017
9	10	43	20	0.021
10	11	47.5	22	0.035
11	12	51.5	24	0.037
12	13	56.5	26	0.0525
13	14	61	28	0.0725
15	16	69.5	32	0.0833
16	18	78	35	0.179
18	20	86.5	40	0.27
20	22	95	44	0.355
24/26	26	105	48	0.52

Rope Dia.	Dimensions(mm)
Rope Dia.	A	L	G	S	Weight/Each(Kg)
2.5	3	19	12	1.6	0.005
3.5	4	21	13	1.6	0.008
4	5	23	14	2.4	0.01
5	6	25	16	2.4	0.016
6	7	28	18	2.4	0.019
7	8	32	20	2.8	0.03
9	10	38	24	3.1	0.047
11	12	45	28	3.3	0.068
13	13	48	30	3.3	0.08
13	14	51	32	3.7	0.1
15	16	58	36	3.8	0.145
16	17	61	38	4.7	0.18
17	18	64	40	4.7	0.2
18	20	72	45	5.7	0.29
20	22	80	50	5.7	0.32
22	24	90	56	6.5	0.47
24	26	99	62	6.8	0.59
26	28	112	70	8	0.8
28	30	120	75	8	1.1
30	32	128	80	8	1.23
32	34	152	92	8.5	1.56
34	36	160	100	8.5	1.76
36	38	176	110	8.5	1.92
