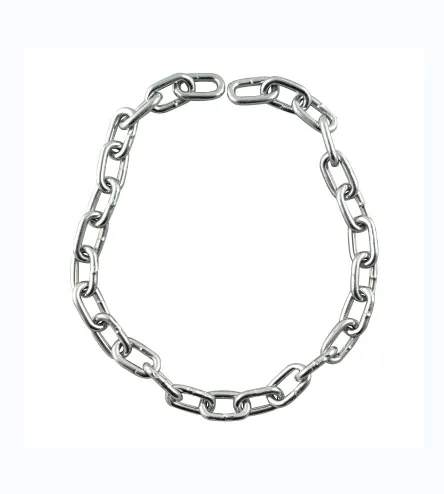

Custom Lifting Chain

Custom Lifting Chain

Lifting chains are available in a range of sizes and styles to suit different types of loads and applications. Some lifting chains are designed for use with specific types of loads, such as heavy machinery or loose materials, while others are more versatile and can be used with a wide range of loads. It is important to choose the appropriate size and type of lifting chain for the specific load and application, as the chain must be strong enough to support the load without breaking or deforming.

Get A Quote

Business philosophy

The company has always adhered to the "quality" for survival, reputation, as the leading business philosophy, has an excellent team of engineers, perfect production equipment and after-sales service.

After sales service and technical assistance

After-sale service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs with response within 24 hours.

Personalized service

Quality assurance,reaasonable prices, service country of origin, experience technical staff, excellent product performance.

Stock

There are emergency stocks for regular size perennially.This to save time for you.

about us

We Have The Best Solutions for Your Business

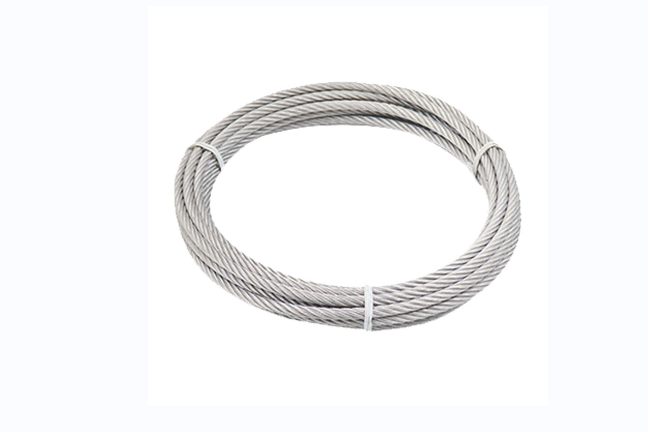

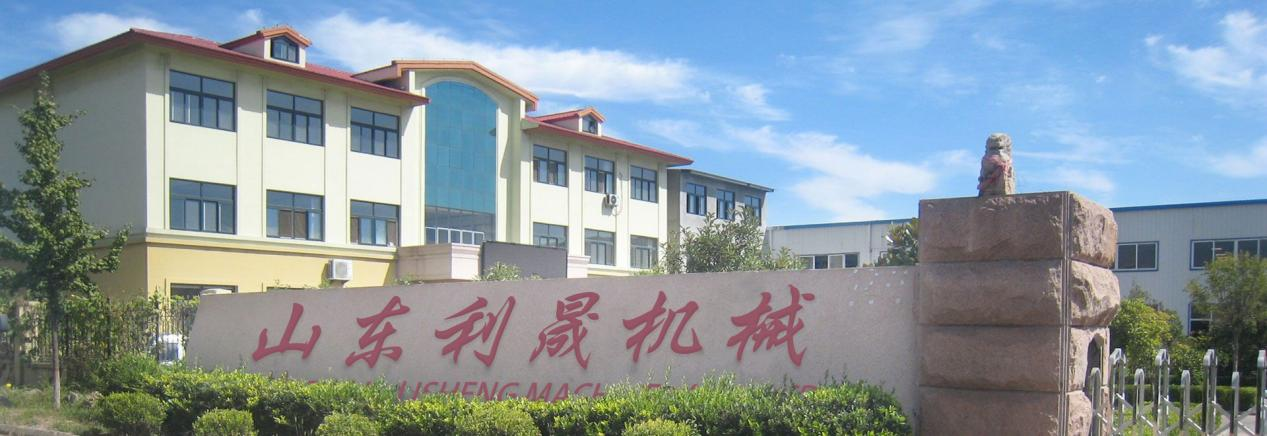

Shandong Lisheng Machinery Co., Ltd. is a new generation enterprise dedicated to the hardware industry. It is located in Jining City, Shandong Province, the hometown of Confucius and Mencius. The company is a professional hardware supporting enterprise integrating design, research and development, production and sales. The main products are chains, wire ropes and their accessories: shackles, turn buckles, clips, rings, snap hooks and other forgings and castings, and accept drawings and samples for processing.

Learn More

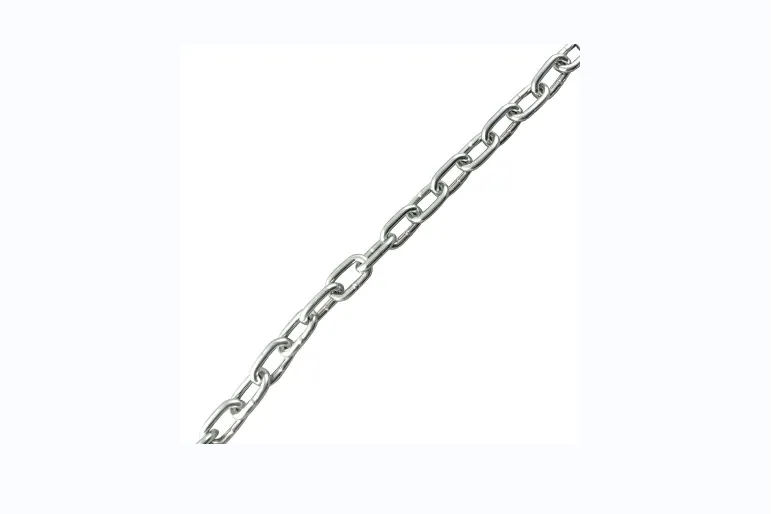

Characteristics of Lifting Chains

Lifting chains are typically made from high-quality alloy steel, which provides excellent strength and durability. They consist of a series of interconnected links that form a continuous chain. Lifting chains are available in different sizes, grades, and configurations to match specific load requirements. They may feature different types of end fittings, such as hooks, shackles, or rings, for convenient connection to lifting devices. Lifting chains are designed to meet industry standards and regulations for load capacity, safety, and performance.

Which chain grade should be used for which type of application?

Alloy Chain Grade 80 or Grade 100 should be used for overhead lifting. ASTM states that alloy chain shall be able to elongate a minimum of 20% before fracture (7.3.5). To ensure that alloy chain consistently meets this requirement, ASTM requires the use of certain alloying elements in the manufacturing of the steel for alloy steel chain. These alloys can vary from company to company, but some key requirements are specified by ASTM. The alloy properties also improve the wear and tear that the chain will experience.  Note that when chain is in use, no amount of stretch is allowed.

About Chain Grades

One of the safety measures implemented was to place chain in Grades based on the ultimate breaking strength of that chain. This number is what we see today G30, G43, G70, G80 & G100 and the common chain grades. The number after each letter is N/mm2. For example, G80 means that the maximum stress on the chain at ultimate strength is 800 newtons per millimeter squared.

Working Load Limit (WLL) of Chain

The safety measure was identifying which types of chain are appropriate and strong enough for overhead lifting. Anytime we move or lift a load it is dangerous. Moving a load along the ground has the advantage that the ground is supporting the load. We have to overcome the coefficient of friction to move the load. The chain’s working load limit does not have to match the weight of the load. It needs to be able to handle the tension applied, which is based on the surface that it is being moved over plus some fraction of the weight of the load. This can be calculated using formulas.

If we lift that same load off the ground, we now have to overcome gravity. The chain’s working load limit will have to be of sufficient strength to support the weight of the load plus any additional forces imposed by angles and hitch type(s) used.

User Reviews

What users say about Us

I am very satisfied for top quality product,quick response and attention provided by this seller and company,Thank you!

Quikly send,very good communication,all is ok,without problem.

Very good quality,fast and safe shipment,Nothing to improve

Great seller!Always online and helpful.Speedy delivery,very good and secure packing.

Frequently Asked Question

Do you have any question?

Only alloy steel chain, grade 80 or 100 is to be used for overhead lifting. Alloy steel chain will stretch when over loaded; other types of steel may break without warning. Steel chains slings used for lifting are manufactured specifically for lifting.

The most common reason for damage to chain and chain links stems from improper use, e.g. not complying with the chain's WLL chart. Using a chain incorrectly can cause damage such as cracks, breaks, stretched links or fittings, excessive wear, nicks, gouges and rigid chain links or fittings

Equipment should generally be inspected every three months, or more frequently if subjected to severe conditions.
