Ensure Safety and Efficiency with Properly Installed Wire Rope Clamps

First, wrap the wire rope around the thimble or to form the eye, and turn back the correct amount of rope—as specified by the manufacturer.

Apply the first wire rope clip at the end of the dead end, with one base width of space. Use a torque wrench to tighten the nuts on the wire rope clip.

When applying the second clip (if required), place it as close to the eye loop or thimble as possible. Again, be sure to properly tighten the nuts of the clip with a torque wrench.

If more than two clips are required, the clips should be evenly spaced between the two that were placed first.

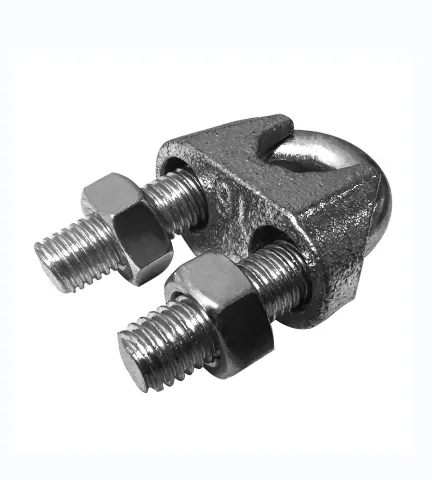

The primary function of wire rope clamps is to secure the ends of wire ropes. They work by clamping onto the rope and providing a strong and secure connection. Wire rope clamps can be used to create loops or thimbles in the rope, allowing it to be attached to other hardware such as hooks or shackles.

There are several different types of wire rope clamps available, including fist grip clamps, which have a hinged design that allows for easy installation; malleable clamps, which are made of soft metal that can be easily shaped; and drop forged clamps, which are made of high-strength steel and are suitable for heavy-duty applications.

Wire rope clamps are an important tool for securing wire ropes. They provide a strong and secure connection without the need for specialized tools or equipment. In many applications, the use of wire rope clamps is essential for ensuring the safety and reliability of rigging and lifting operations.
